Convenience Store Walk-In Coolers and Freezers Guide

A standard frame mounts to the face of the walk-in box panel, while a plug frame inserts directly into the panel opening. Plug frames are the correct choice when your existing walk-in box was originally built to accept a plug-style door. Replacing a plug door with a standard frame door — or vice versa — requires panel modification, so always match the frame type to your existing opening.

Heated frame (heated jamb) options are strongly recommended for walk-in freezer applications, particularly in high-cycle doorways. Without a heated jamb, moisture condenses and freezes at the door frame, causing frost buildup, door stick, and gasket damage. ELT offers heated frame and heated plug frame configurations on freezer doors to prevent ice-up and maintain a reliable seal.

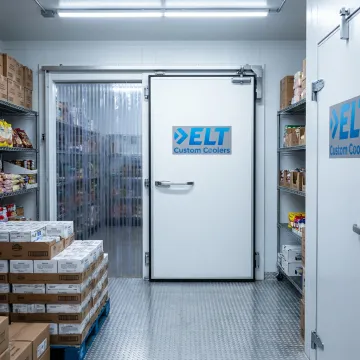

A strip curtain like the Kason 402 Easimount acts as a secondary thermal barrier when the walk-in door is open. It reduces cold air loss, cuts compressor run-time by 20–40% on high-cycle doorways, minimizes frost buildup on freezer frames, and supports food-safety temperature compliance — all critical in busy c-store environments with frequent door openings.

ELT offers the 8'x8'x8' walk-in cooler or freezer box as a complete turnkey unit including the insulated panel structure and a prehung door. Refrigeration equipment is sold separately. This compact footprint is ideal for c-stores, bodegas, and small-format retailers that need real walk-in capacity without the space demands of a larger custom box.

Essential walk-in door hardware includes hinges (such as the Kason 1245 cam-rise hinge for self-closing operation), a hydraulic door closer (Kason 1094 SureClose, rated for 500,000+ cycles), a door handle (Kason 1229), and a safety inside release handle (0481 Safety Glow) for occupant safety compliance. All components are available individually as replacement parts.

The Kason 1967-A3 Dual Temperature Display & Switch monitors both cooler and freezer probes from a single device. It features an ultra-bright LED display, 9V battery backup, plug-and-play installation with no calibration required, and is NSF Certified and UL Listed — making it suitable for food service and c-store regulatory compliance requirements.
